750 wired and starter working
Okay, still working on a wiring. The key switch is place and wired with the 30 amp breaker behind it, mounted to a existing frame tab.

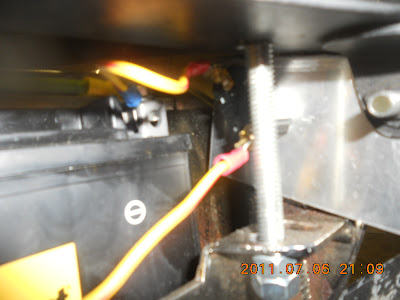

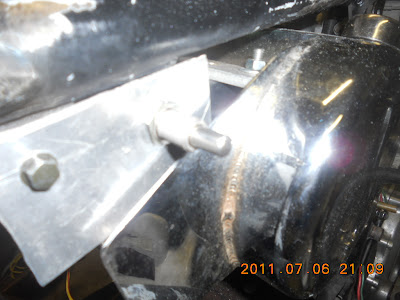

Ground wire to the frame, to green wire from the harness, and to yellow/red for the starter switch.
12V+ one to the starter relay, and one through the circuit breaker and to the key switch.
Here's the circuit breaker.
Back of the starter button. It takes a ground to low side of the starter relay. The key switch is the high side of the relay.
Seems to work. Vierkan does the honors.
